xEnergy low-voltage switchgear is built on a technical architecture and design standards compatible with Eaton systems, following the design concept of high safety and high reliability. The complete range of switchgear specifications provides a range of compact low-voltage switchgear solutions for important industrial and commercial customers.
The xEnergy switchboard system consists of IEC/EN 60439/61439 type-tested function modules. These have an internal separation up to Form 4, and comply with various national or regional installation requirements, such as DIN VDE, CEI, NF or UNE. This means you can design customised solutions for use in several different countries.
The xEnergy system offers you a wide range of options for implementing power distribution reliably, economically and fully in accordance with customers' requirements. Feeder and coupling cabinets can be used for circuit breakers (up to 6300A), and outgoing cabinets can be configured separately for fixed and removable compartment modules for disconnecting and protecting electrical devices (up to 630A). Outgoing cabinets (up to 630A) are also provided for switching fuse strips, fuse guides and fuse disconnectors.
Techniacl paramenters of switchgear
| Item | Technical Parameter |
|---|---|
| Rated voltage | 400V/690V |
| Rated insulation voltage | 1000V |
| Rated frequency | 40-60Hz |
| Horizontal busbars Rated current | Below 6300A |
| Rated short-time withstand current | Below 100kA |
| Rated peak withstand current | Below 250kA |
| Vertical busbars Rated current | Below 2500A |
| Internal separation form | Form1-Form4b |
| Protection class | IP40 |

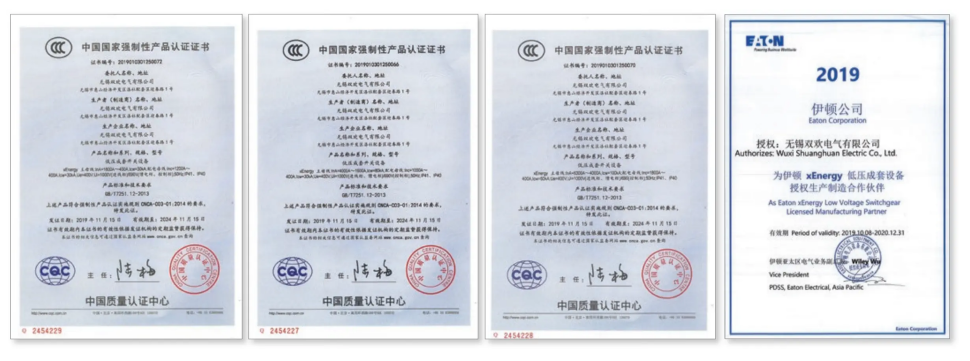

Certificates
