KYN28-24 metal-armored shifting switch cabinet is suitable for three-phase AC 50Hz, 24kV single busbar section power system, it also control, protection and monitoring for the circuit, meet the requirements of IEC60298,GB3906,DL404 and other standards, and has perfect "five preventions" function.
KYN28-24highvoltagecabinetisfully developed and designed by our company based on years of experience in cabinet production. the cubicle body is of high accuracy,strong corrosion resistance and inoxidation.Further more it has lighter weight,highter mechanism strength and more beautiful appearance than other similar ones.the body is built up in construction and jointed with bolts and nuts so that the production cycle is shortened,the part generaliztion raised,the space area reduced and the production procedure optimized. The highest rated current of the product can reach 2500A.The products are mainly used in the developed areas of new industrial parks or export projects.
Techniacl Paramenters of Switchgear
| Item | Technical Parameter |
|---|---|
| Rated voltage | 24kV |
| Rated frequency | 50Hz |
| Rated current for main bus | 630A~2500A |
| Rated insulation level | |
| 1 min power frequency withstand voltage (effect value) | Phase to phase, phase to earth: 65kV; Primary isolating fracture: 75kV |
| Ligntning impulse withstand voltage | Phase to phase, phase to earth: 125kV; Primary isolating fracture: 145kV |
| Auxiliary control circuit 1 min power frequency withstand voltage | 2000V |
| Rated short circuit breaking current | 25kA, 31.5kA |
| Rated short circuit closing current(peak value) | 63kA, 80kA |
| Rated short time withstand current(4s) | 25kA, 31.5kA |
| Rated peak value withstand current | 63kA, 80kA |
| Rated voltage of control circuit | AC110V, 220V；DC110V, 220V |
| External dimensions (W*D*H) | 1000×1800(2200)×2400 mm |
| Protection class | |
| When circuit breaker chamber door is closed | IP4X |
| When circuit breaker chamber door is opened | IP2X |

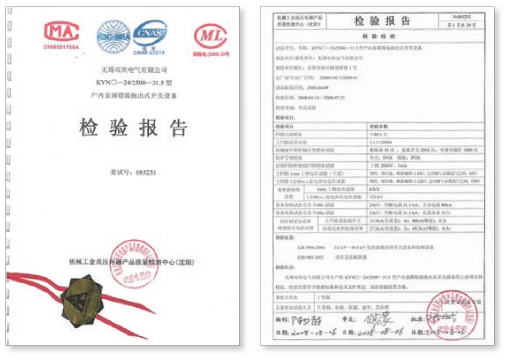

Test Report
