The SIVACON 8PT is a new low voltage switchgear designed by Siemens.SIVACON 8PT is a low voltage distribution device for worldwide use in a variety of capacity classes up to a maximum rated current of 7400A.All modules have passed type test (TTA)(design verification and internal arc test).Various modules can be combined fiexibly to meet various requirements. High-quality Siemens components are used in the cabinet to ensure the long-term and reliable operation of the equipment.It is widely used in high-speed railway, subway, civil aviation, data center, supercomputer center and other power supply places with high reliability requirements. From energy security to energy efficiency management,SIVACON 8PT delivers superior safety and reliability.
Techniacl Paramenters of Switchgear
| Item | Technical Parameter |
|---|---|
| Rated voltage | 400V |
| Rated insulation voltage | 690V |
| Rated frequency | 50Hz |
| Horizontal busbars | |
| Rated current | Below 6300A |
| Rated short-time withstand current | Below 100kA |
| Rated peak withstand current | Below 250kA |
| Vertical busbars | |
| Rated current | Below 2500A |
| Rated short-time withstand current | Below 110kA |
| Rated peak withstand current | Below 50kA |
| Protection class | IP40 |

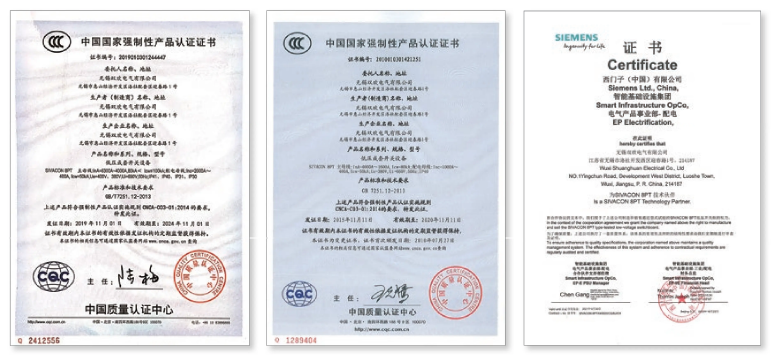

Certificates
