TBB-12 series high voltage shunt capacitor device is suitable for the transmission and distribution system with frequency dimension of 50 Hz and rated voltage level of 6kV and 10kV. As the compensation device for reactive power of the system, it can optimize the power factor of the system and adjust the network voltage to reduce the loss of the distribution system and transformer, reduce the line loss and improve the power supply quality of the power grid.
Techniacl Paramenters of TBB
| Item | Technical Parameter |
|---|---|
| Rated voltage | 6kV/10kV |
| 1 min power frequency withstand voltage | 23kV/30kV |
| Auxiliary control circuit 1 min power frequency withstand voltage | 2000V |
| Rated frequency | 50Hz |
| Protection class | IP40 |
| Reactance rate | 1% -12% |
Performance of TBB
The device allows continuous operation under the steady-state overcurrent of 1.3 times the rated current due to overvoltage and high harmonics.
The device is allowed to run for a long time under the rated voltage of 1.1 times power frequency.
The device can set the inrush current limit value at the moment when the capacitor bank is put into operation, which is less than 20 times of the rated current of the capacitor bank.
Capacitor capacity deviation not exceeding -5%~+10% of the rated value The ratio of maximum to minimum capacity measured between any two line terminals in three phases shall not exceed 1.02.
The dielectric between the terminals of the capacitor unit must be able to withstand one of the following two tests, lasting 10s: power frequency AC voltage (2.15un);AC voltage (4.3un)

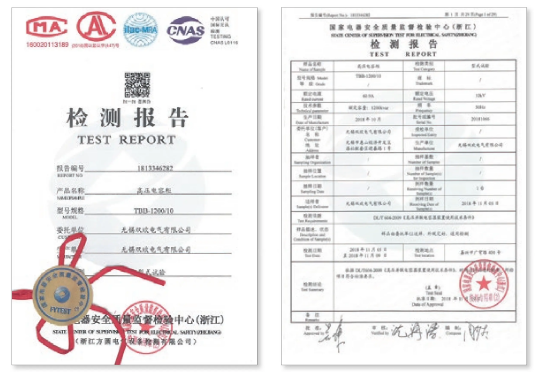

Test Report
